Embracing Simplicity. Again. This time, it’s DNS.

I, like many, hate DNS. I tolerate it. It’s there because, well, I need it. There’s just only so many IP addresses one can keep rattling around inside one’s head, right? So, it’s DNS.

For years, I ran the old standard, BIND under Linux here at home. My old BIND config did a local forward to dnscrypt-proxy, which ran bound to a port on localhost, and then in turn pushed traffic out to external DNS servers like Cloudflare’s 1.1.1.1 or IBM’s 9.9.9.9. I didn’t think my ISP was entitled to be able to snoop on what DNS lookups I was doing. They still aren’t entitled to those, so I didn’t want to lose that regardless of what I ended up doing.

Out in the real world, my domain’s DNS was hosted by DNS Made Easy. They’ve got a great product. It’s reliable, and it’s not insanely expensive. It’s not nothing, but we’re not talking hundreds a year either. I think it’s about $50 a year for more domains and queries than I could possibly ever use. But, like many old schoolers, they’ve lagged behind the times. Yes, they’ve got things like a nice API, and do support DNSSEC, but DNSSEC is only available in their super expensive plans that start at $1700+ a year. That’s just not happening. So, I started looking around.

I landed on Cloudflare. They’ve got a free tier that fits the bill for me. Plenty of record space, a nice API, dare I say, a nicer API even. DNSSEC included in that free tier at no cost even. How do you beat free? I was using a mish-mash of internal and external DNS with delegated subdomains for internal vs external sites as well. It was (again) complicated – and a pain in the rear.

So, I registered a new domain to use just for private use. I did that through Cloudflare as well. As a registrar, they were nice to work with too. They pass that through at cost. Nice and smooth setup. So, internal stuff now consists of names that are [host/app].site.domain.net. Traefik is setup using the Cloudflare dns-01 letsencrypt challenge to get certs issued to secure it all, and the connectivity, as discussed before in the other post is all by Tailscale. The apps are all deployed using Docker with Portainer. The stacks (ok, they’re just docker-compose files) in Portainer are all maintained in private GitHub repos. I’ll do a post on that in more detail soon.

Ok, so what did I do with the DNS at home? Did I just ditch the resolver in the house entirely? I did not. In the end I opted for dumping BIND after all these years and replacing it with Unbound. I had to do a bit of reading on it, but the configuration is quite a bit less complex, since I wasn’t configuring zone files any more. I was just setting up a small handful of bits like what interfaces did I want to listen to, what did I want my cache parameters to look like, and what did I want to do with DNS traffic for the outside world, which pretty much everything is? In my case, I wanted to forward it to something fast and secured. I was already crushing pretty hard on Cloudflare, so 1.1.1.1 and 1.0.0.1 were easy choices. I’m also using IBM’s 9.9.9.9 as well. All of those are forwarding out using DNS-over-TLS, and DoT, or sometimes DOT. It worked for me first try.

Then I grabbed the Ubuntu certbot snap and told it to grab a cert for dns.home.$(newdomain).net, which is attached to this moon. After I got the cert issued, it was a piece of cake to turn up both DNS over HTTPS and DNS over TLS, and DoH and DoT.

It was fairly easy to get DoH working on a Windows 11 PC. It was also super easy to craft an MDM-style config profile for DoT that works great on IOS and iPadOS devices. Microsoft has Apple beat cold in this department. Well, in the Apple wold, if you configure a profile for DoT (the only way you can get it in there) you’re stuck with it until you get rid of it – by uninstalling and reinstalling.

On Windows? It was as easy as setting your DNS servers to manual, then crack open a command prompt as Administrator and then (assuming your DNS server is 10.10.10.10)…

netsh dns add encryption 10.10.10.10 https://my.great.server/dns-query

Once you’ve done that, you’ll be able to choose from a list under where you punch in DNS settings in the network settings and turn on Encryption for your DNS connection. It’s working great!

So, You Should Dump IPsec, Right?

Wrong. Probably.

So, Since I just posted the other day about dumping my pile of Python scripts and IPsec VPNs and moving to Tailscale for my personal use case, several folks have sparked conversations with me about the topic.

In my case, it made complete sense to do something else. I was using a solution that was the essentially held together with bubblegum, duct tape, and baling wire. It was fragile, it kept breaking, and let’s be real – I was bending the solution into a shape it wasn’t designed to be used in – which is why it kept breaking in the first place.

You see, IPsec tunnels are intended to work when you’ve got stable, fixed endpoints. Over time, things have been done so that endpoints can become dynamic. But typically just one endpoint. Suddenly, with two dynamic endpoints, results become… Unpredictable. I think that’s a kind way of putting it even. That right there, explains my repeated breakage problems.

So, if you’re still using traditional firewall & VPN in a more traditional use case, then yes, keep doing things more traditionally – keep on using IPsec VPNs. It’s quite honestly the best tool in the bag for what you’re hoping to accomplish in terms of securing data that’s in motion, provided you’re able to meet the bars of entry in terms of hardware support as well as supported feature set.

So, get rid of your firewalls? Not a chance. Get rid of my SRX firewalls and EX switches? No way, no how. You can have my Junos stuff when you pry it from my cold, dead hands. Heck, I make my living with Junos. But just like the whole story of the guy who only has a hammer and thinks everything is a nail, sometimes you’ve just got to use a different tool to do the job right.

But taking the time to think about how to break up with complexity and technical debt? Yeah, that’s totally worth your time. Sometimes that means saying goodbye to old friends, even when you forced them into places where they didn’t quite fit.

So, in the end the whole square-peg-round-hole thing? Stop doing that.

Ditching Technical Debt. Embracing Simplicity.

I work in networking. I’ve been doing that for a long time now. Along that journey, I’ve also had occasional detours into worlds like generic IT and data security as well. I also do volunteer work at a nonprofit. Plus, like many of you who work in tech, there’s stuff that lives at the home(s) of relatives that you maintain because you’re that sort of person.

Sometimes, you do it cheap, sometimes you do it right, and sometimes you do it somewhere in-between. Like where you’ve got DHCP-assigned WAN interfaces everywhere because everywhere has home-user type Internet services, or less-expensive business-class occasionally. Anyhow, you can’t always count on having the same IP in the same place twice. BUT, you want things to be secured, and you don’t just want wide-open port forwards with plain old Dynamic DNS.

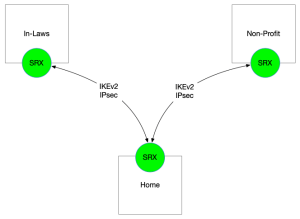

How things used to work, in the IPsec days…

You’ve got some Juniper SRX firewalls you’ve bought for lab work & study previously, you want to make use of them with IPsec VPNs, but to do it right, you really need static IPs. So, what do you do? You fake it. You just pretend you’ve got static IPs on the tunnel endpoints and configure it up. The tunnels come up, you post up your BGP sessions between your st0.0 IFLs, announce some routes, put some reasonable security policies in place. Yes, I did have security policies in there. I was born at night, but it wasn’t last night, guys. But how did I keep it working with IPs changing all the time?

Here’s how I was solving that problem up until fairly recently. I’ve been hacking away at my DNS-o-Matic and DNS Made Easy updaters for a while now. The DME updater was much better, IMHO, as it directly updated a single, private zone that only I ever cared about rather than rely on someone else to sit in the middle and do the updates for me. Plus, I wrote the whole thing from the ground up using DME’s API docs, so I knew exactly how it worked, inside & out. No excuses for it doing anything I didn’t understand, and honestly, I’m really happy with how well it’s been working. It’s been a great opportunity to get better at Python, in particular doing things in a more “Pythonic” way, rather than trying to “just get it done”, or worse, trying to make it work the way I used to do things in Perl or PHP years ago. Is it iconic? Not even close, but it does works pretty darn well.

So, with these containers all ran on Intel NUCs under Ubuntu Linux at each site. There were 1 more container on each of these NUCs as part of this operation. I had a set of Telegram Bots that talked to each other as part of this network to inform each other of site IP changes. So, if HOME changed its IP, the bot at HOME sent a message to the group that included the bots for NONPROFIT and INLAWS. Those bots saw note that the IP had changed and they should go find out the new IP of HOME, so they can update their tunnel endpoints. This in turn fired off a function that used the Junos PyEZ API module to update the IPsec tunnel endpoint IPs.

Did it all work? Yes, believe it or not, this actually all worked. Was it pretty fragile and not for the faint of heart? Oh yeah, for sure. Would I recommend doing it? Not a chance. So much so that I’m not even going to share the code, apart from the DDNS updaters. The other stuff is definitely hackjob territory. So, since it was so fragile and had the tendency to break, what did I do? Well, the first few times, I drove and fixed. Which frankly, sucked. After that, I installed an OpenVPN container at each of the locations. Later, I replaced those with linuxserver/wireguard containers. But, after it all broke like twice in about a month, I’d just about had enough. I cried Uncle and decided I was going to look for some other way to do this.

And that’s when my old pal Bhupen mentioned Tailscale to me. I was already into Wireguard. So making it easier, faster, and more useful were all on my short list. Drop the tailscale client on the NUC, get it logged in announcing the local subnet into the tailnet (their name for the VPN instance), making it a “subnet router”, approve the route announcement in the portal and it’s going. I’ve got control over key expiry too. Security policy (naturally) moved from the SRX down to the tailscale gateways, but their ACL language wasn’t too difficult to wrangle. It’s all JSON, so it’s reasonably straightforward.

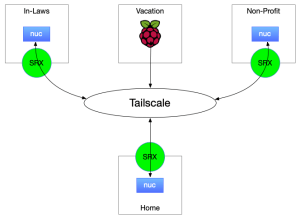

So, with all the scripts gone and the IPsec stripped away, what’s it all look like? Well, we also added 1 more site into the mix as well – the in-laws vacation place. They bought a place and I stuck a Raspberry Pi up there for future IOT use. Not entirely sure about the “what” yet, but they just updated the HVAC, and it’s all smart stuff, so I expect there will be instrumentation. Maybe something that spits out time series info to Influxdb or somesuch. Who knows? Or Perhaps HomeKit/Homebridge stuff. Time will tell.

In the time since I made the diagrams and wrote this up, things have also changed slightly on the homefront.. I’ve deployed a 2nd subnet router at Home. In the Tailscale docs, they say all over the place not to deploy two subnet routers with the same IP space, and generally speaking, it’s with good reason – traffic destined for those prefixes announced by those routers will be round-robin’d back and forth between them. In my case, since they’re on the same physical subnet, this is essentially ECMP routing, so no big deal. I haven’t validated if they’re really getting the hashing correct, but haven’t really noticed any ill effects yet, so I haven’t shut off the 2nd subnet router yet.

So, by dropping all the BGP sessions, IPsec tunnels, Python scripts, Telegram bots, and Docker containers, things have become much simpler, and much more stable. I’m really happy with Tailscale. So much so that I ended up subscribing at the Personal Pro tier. Great bunch of folks – can’t help but recommend them.

UPDATE: This ended up sparking a bunch of sidebar conversations. Go read what I had to say as a followup…
